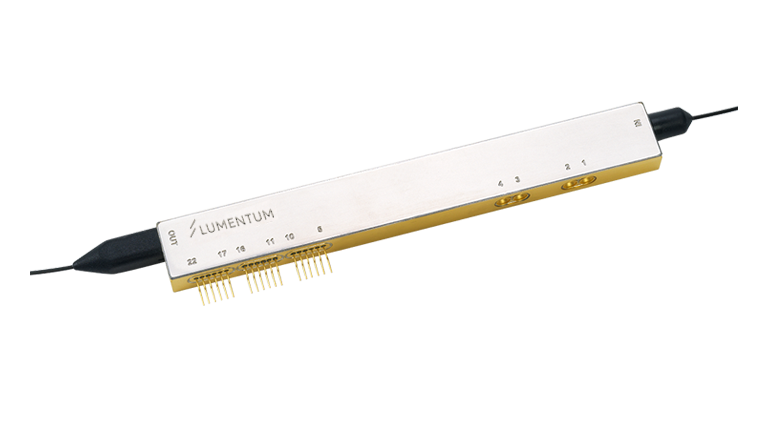

Modulator, 100G/200G DP-QPMZ

Modulator, 100G/200G DP-QPMZ

The Lumentum 100G PM-QPSK modulator is designed according to the widely accepted OIF 100GE Tx implementation agreement. It supports the dual polarization-QPSK modulation scheme, with each of four parallel MZI’s running at speeds of up to 32 Gbaud. The chip design features low insertion loss (with very small polarization dependent loss) as well as a high bandwidth with quasi-linear electro-optic roll-off.
