DMLs

DML 25G CWDM Laser for Extended Temperature

HL13BSCP02-Ln

DML

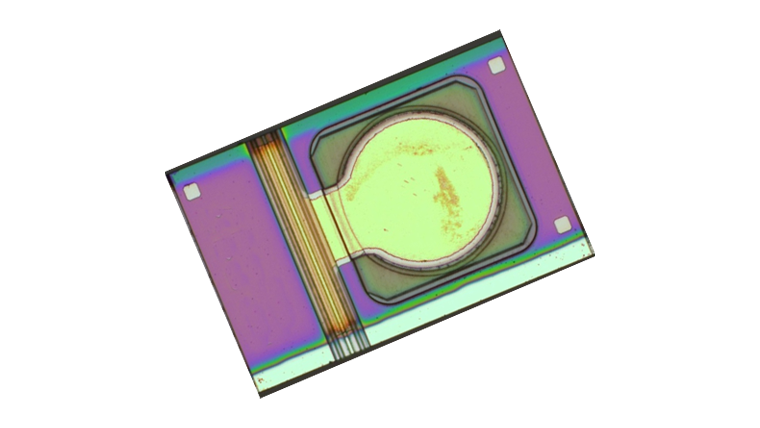

Lumentum’s DML 25G CWDM laser for extended temperature applications delivers robust, energy-efficient optical performance for demanding environments in data center, access, and aggregation networks. Operating at CWDM wavelengths of 1271, 1291, 1311, or 1331 nm, this indium phosphide (InP) distributed-feedback (DFB) laser supports 25G operation over a wide temperature range from –5 °C to 85 °C and up to 10 km reach on single-mode fiber. It also supports 50G PAM4 modulation for next-generation SFP56 modules. Built on Lumentum’s high-volume InP manufacturing platform, it combines excellent linearity, low chirp, and strong side-mode suppression for clean optical spectra. GR-468 qualified for long-term reliability, the DML 25G CWDM enables compact, cost-effective transmitters for 25G and 50G optical modules used in access, 5G transport, and data center applications where thermal performance and scalability are critical.

Features and Benefits

  • InP DFB laser with integrated Bragg grating for precise wavelength locking
  • Supports 25G and 50G PAM4 direct modulation
  • CWDM wavelengths: 1271, 1291, 1311, 1331 nm
  • Operating temperature range: –5 °C to 85 °C
  • Typical reach up to 10 km over single-mode fiber
  • Strong side-mode suppression ratio for clean optical spectra
  • Low chirp and low power per bit for efficient operation
  • GR-468 qualified for long-term reliability
  • Stable supply from Lumentum’s internal InP foundry
  • Proven interoperability across standard 25G and 50G optical module families

Applications

  • 25G LR and 25G BiDi SFP28 modules for access and aggregation links
  • 50G LR and 50G BiDi SFP56 modules for next-generation access deployments
  • Short- to medium-reach single-mode fiber connectivity up to 10 km
  • 5G front- and backhaul network connections
