Ultra-Small Form Factor Pump Lasers

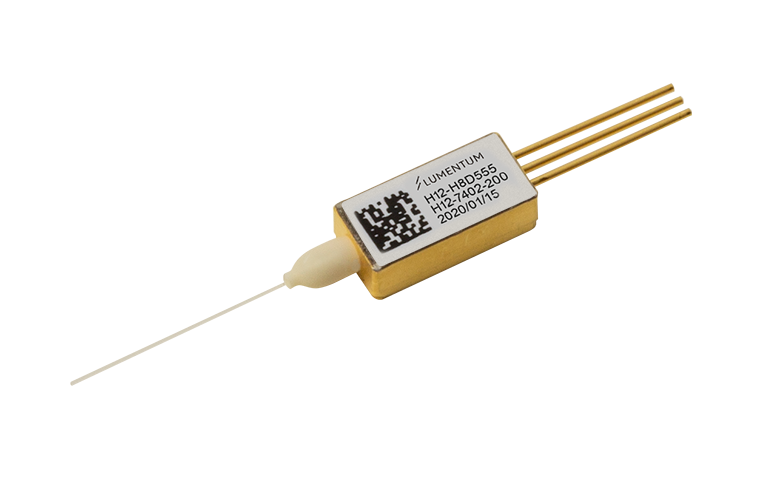

400 mW Uncooled 3-Pin 980 nm Pump Modules

H12 Series


The Lumentum H12 uncooled 3-pin low profile planar package pump laser employs 6570 flagship chip and advanced packaging design to significantly reduce the 980 nm pump's size and power consumption. It meets the telecommunications industry’s stringent requirements, including Telcordia GR-468-CORE for hermetic 980 nm pump modules.
The H12 Series pump module, which uses fiber Bragg grating stabilization to lock the emission wavelength, provides a noise-free, narrow-band spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications requiring the highest performance in spectrum control with the highest power available.
